Mechanical Bar Screen

Mechanical Bar Screen is a primary treatment equipment suited for sewage and industrial wastewater treatment plants. It is channel-mount type screen working linear chain drive mechanism bottom to upper level. By the help of this it can collect partices deep levels up to 10 meters.

Bar openings may be from 5 mm to 50 mm accoding to our customers projects and needs. 5-10 mm is cited as fine screens and bigger openings than 10 mm is cited as coarse screens.

All part of the mechanical bar screen including chains, drive mechanism and main chassis made from AISI 304 stainless steel. For river water treatment and potable water treatment plants it can be made from AISI 316 stainless steel..

Mechanical bar screen also known as rake type bar screen.

Pumping stations and headworks of waste treatment plants are equipped by mechanical bar screens to prevent pumps from clogging.

The screen is installed onto an axis of a special rotating prop mounted on the channel walls or onto channel top level while the screen itself can be lifted over the channel for maintenance.

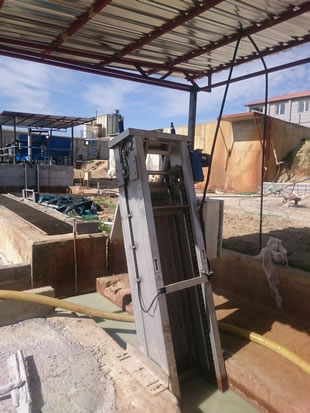

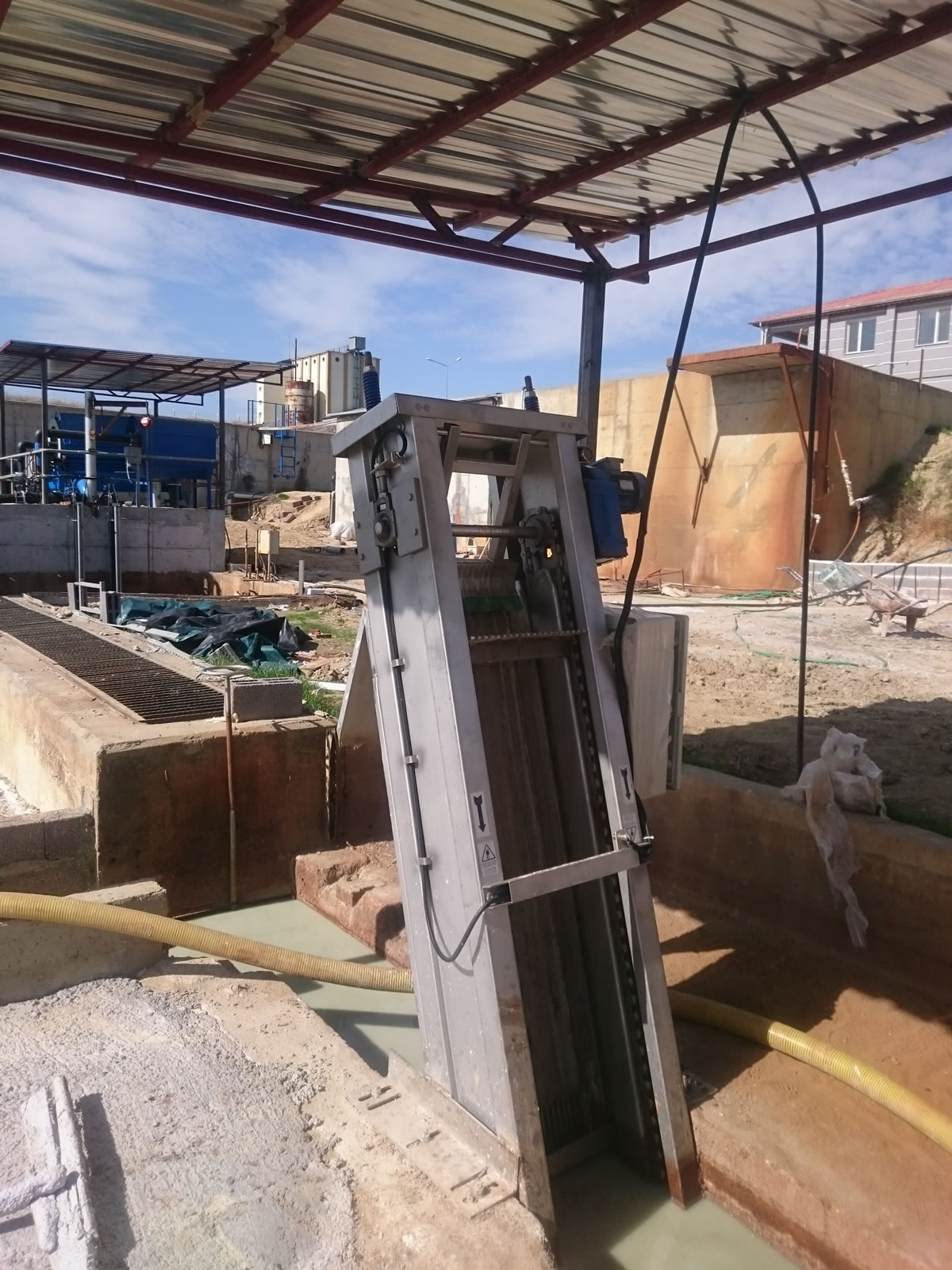

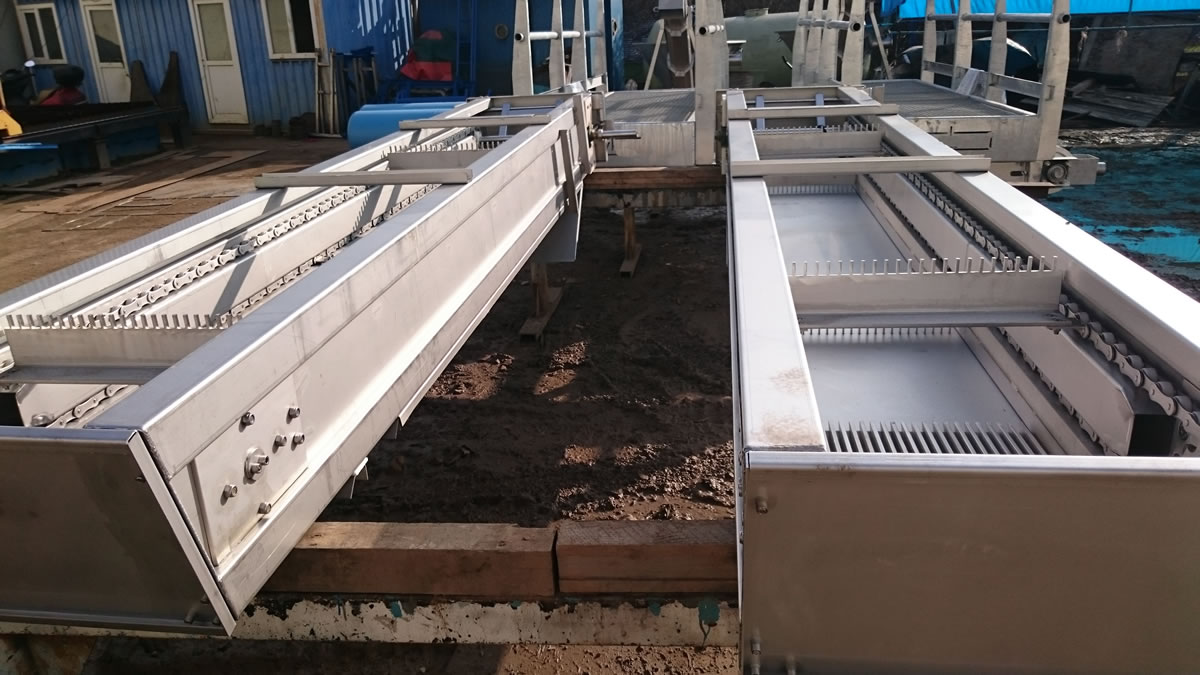

Mechanical Bar Screen Mechanical Rake Screen
